STINGER HEIGH10 FORD TRANSIT 2013 – 2021

Description

STINGER HEIGH10 FOR FORD TRANSIT 2013 – 2021

Upgrade your Ford Transit Connect with the HEIGH10 10-inch infotainment system. Designed for vehicles without a top display, this system provides a seamless, plug-and-play installation, allowing you to retain steering wheel controls while enhancing your driving experience with modern, high-quality features.

Key Features & Integration

• 10-Inch High-Resolution Touchscreen: The HEIGH10 features a 10-inch capacitive touchscreen with 16.7 million colours, offering a sharp, vibrant display that will improve your infotainment experience.

• Anti-Glare and Anti-Reflection Technology: With anti-glare and anti-reflection technology, the display ensures optimal visibility, even in bright sunlight or low-light conditions.

• Customizable RGB Illumination: Tailor the RGB illumination of the screen to match your vehicle’s factory lighting, or create your own unique lighting scheme for a personalised touch.

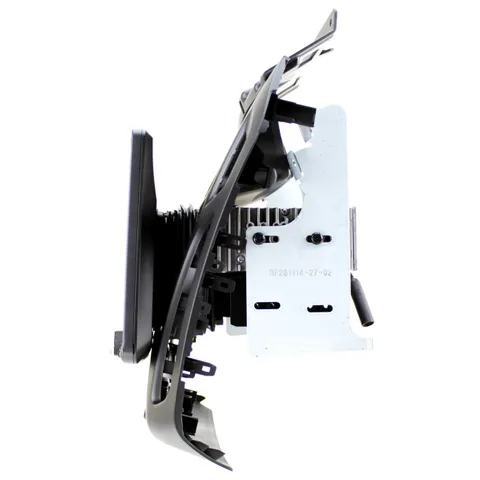

• Modular Design: The display and tuner box feature a modular design, allowing flexible installation in tight spaces, even in cases where an installation dash kit may not be available.

Seamless Vehicle Integration

• Bespoke Installation Kit: The vehicle-specific dash kit ensures a factory-like installation, maintaining the aesthetics of your vehicle’s interior while offering an upgraded infotainment system.

• Enhanced Control: Retain full steering wheel controls and enjoy full functionality of your camera triggers and other vehicle controls through the interface.

Retain Key Vehicle Functions

• Steering Wheel Controls: With the HEIGH10, you can continue to use your steering wheel controls, allowing you to adjust volume, change tracks, and answer calls without ever having to take your hands off the wheel.

Your Media, Your Way

The HEIGH10 allows you to access all your smartphone’s features and media, offering a truly modern infotainment experience:

• Apple CarPlay®: Integrate your iPhone seamlessly with the system for easy access to navigation, music, messages, and more.

• Google Android Auto™: Sync your Android smartphone to access your favorite apps and services directly on the display.

• DAB+ Digital Radio: Enjoy DAB+ digital radio, which provides superior sound quality and more radio station options.

• AM/FM Radio: Keep listening to your favorite AM/FM stations for news, talk shows, and music.

• USB Inputs: Two USB rear inputs with 1.5-Amp output to charge devices and access media from flash drives.

• Bluetooth 4.2 with aptX™: Enjoy hands-free calling and music streaming with Bluetooth 4.2, offering excellent audio quality and aptX™ support for better sound fidelity.

Advanced Audio Features

With HEIGH10, enjoy an enhanced listening experience with advanced audio controls and features:

• Built-In Amplifier (25W x 4): The system features a 25W x 4 amplifier, delivering high-quality sound output across all channels.

• 15-Band Adjustable EQ: Fine-tune your audio with the 15-band equalizer, which lets you adjust the frequency levels for your music.

• Subwoofer Preout and Built-In Crossover: The HEIGH10 offers a subwoofer preout and built-in high-pass (HPF) and low-pass filters (LPF), allowing you to optimize your car’s sound system for a deeper bass experience.

• Time Alignment: Adjust the time alignment to synchronize your sound system for perfect audio delivery.

Additional Features

• FM/AM Tuner: The system features a FM (87.9 MHz to 107.9 MHz) and AM (530 kHz to 1710 kHz) tuner, so you can enjoy radio stations even during long drives.

• HDMI Input: Enjoy video streaming with the HDMI input, which supports resolutions up to 1920x1080p.

• Toslink (Optical) Audio Output: For superior audio quality, the Toslink output supports 48kHz resolution for crystal-clear sound.

• Background Image Support: Personalise your display with a custom background image in JPG/PNG format, with a 1024 x 600 resolution.

Specifications

• Display Resolution: 1024 x 600

• Screen Size: 10-inch capacitive touchscreen, 16:9 aspect ratio

• Audio Output: 25W x 4ch at 4Ω, with 4V preout for external amplifiers.

• USB Ports: 2 USB rear inputs, 1.5-Amp output for charging and media access.

• Bluetooth Version: Bluetooth 4.2, supports A2DP and aptX™ for high-quality audio streaming and hands-free calls.

• Camera Inputs: Compatible with NTSC or PAL video formats.

• HDMI: Supported HDMI resolutions up to 1920 x 1080p.

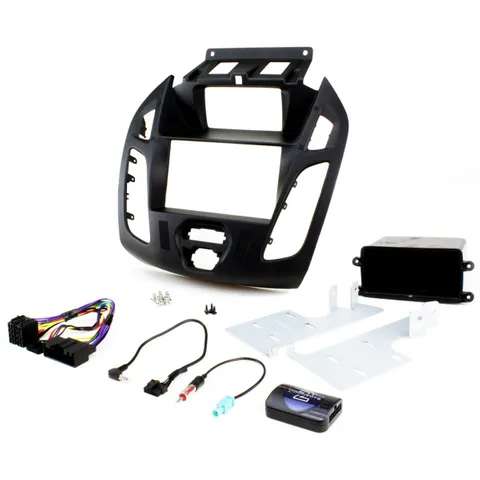

Included in the Box

• HEIGH10 10-inch touchscreen display/infotainment system

• Vehicle-specific radio mounting dash kit for a seamless fit

• Complete vehicle integration module for full compatibility

• Vehicle & radio specific plug-and-play harnessing

• AM/FM antenna adapter for radio reception

• USB retention cable for ongoing connectivity

• Stereo connection lead for media and sound system integration

Why Choose the STINGER HEIGH10 for Your Ford Transit?

• Enhanced Visuals: The 10-inch touchscreen with 16.7 million colours ensures a sharp, vivid display for all your navigation, media, and vehicle controls.

• Seamless Integration: Designed for Ford Transit 2013 – 2021, the HEIGH10 offers a clean installation that retains all essential vehicle features.

• Modern Features: Apple CarPlay®, Google Android Auto™, DAB+ digital radio, Bluetooth streaming, and hands-free calling all come standard.

• Superior Sound: With its built-in amplifier, customizable EQ, and subwoofer controls, the HEIGH10 ensures an improved listening experience.

• Complete Safety: The system supports camera inputs, providing extra peace of mind and helping with parking and reversing.

Mobile Installation Services Available

At NZ Desi Car Security and Sounds, we provide mobile installation services for the STINGER HEIGH10. Our professional installation team will come to you, ensuring a smooth, hassle-free setup at your convenience.

Upgrade your Ford Transit today with the STINGER HEIGH10 and experience the future of in-car infotainment!

📞 Contact NZ Desi Car Security and Sounds for more details and to book your installation!
