STINGER HEIGH10 RAM TRUCK 2013 – 2018

Description

STINGER HEIGH10 FOR RAM TRUCK (2013 – 2018)

Transform your driving experience with the STINGER HEIGH10 10-inch touchscreen infotainment system, designed specifically for RAM Trucks (2013 – 2018). Offering a larger screen, superior sound, and enhanced safety features, the HEIGH10 is built to seamlessly integrate with your vehicle while delivering next-generation entertainment, connectivity, and convenience.

Key Features & Integration

• 10-Inch High-Resolution Touchscreen: The HEIGH10 boasts a stunning 10-inch digital touchscreen with 16.7 million colors for a vibrant and immersive experience. Featuring Anti-glare and Anti-reflection technologies, you’ll enjoy clear visibility regardless of lighting conditions. Plus, the RGB illumination is fully customizable, so you can match your display to your truck’s factory illumination or create your own unique look.

• Seamless Vehicle Integration: The included dash kit and mounting allow for a bespoke, factory-like installation. The system’s vehicle-specific interface enables you to interact with your truck’s climate controls, vehicle settings, and performance apps directly from the touchscreen.

• RadioPRO Advanced Control: For enhanced control over your RAM’s infotainment system, the RadioPRO Advanced interface provides support for camera triggers, steering wheel controls, and more.

Retained Features

• Steering Wheel Controls: Retain full functionality of your steering wheel controls to adjust audio, calls, and other settings without taking your hands off the wheel.

• Phone Button Compatibility: Your phone button will remain fully functional, allowing you to make and receive calls hands-free.

• Factory Camera Feed: Keep using your factory camera feed (if applicable) for rearview visibility.

• Climate Control Visualization: Easily adjust your climate settings through the screen with full visualization of controls.

• Original Auxiliary Input: Retain the original auxiliary input for additional media connectivity.

• Heated Seats/Heated Steering Wheel: Control your heated seats and heated steering wheel directly from the display.

• On-Screen Vehicle Settings Menu: Access vehicle settings on-screen, including door locks, lighting, and more, directly from the HEIGH10 display.

Media & Connectivity

• Apple CarPlay®: Enjoy full Apple CarPlay® integration to access music, navigation, messages, and more from your iPhone.

• Google Android Auto™: Seamlessly connect your Android device via Android Auto™ for easy access to apps, maps, and media.

• DAB+ Digital Radio: Stay tuned to crystal-clear digital radio with built-in DAB+ support.

• AM/FM Radio: Keep listening to your favorite AM/FM radio stations.

• Bluetooth® 4.2: Bluetooth® 4.2 offers hands-free calling and music streaming with support for aptX™ for high-quality audio.

• USB Rear Inputs: Two USB rear inputs with 1.5-Amp output for connecting and charging your devices on the go.

Advanced Sound Features

• Built-in Amplifier: The HEIGH10 features a 16W RMS x 4 built-in amplifier, delivering clear and powerful sound throughout your cabin.

• 6-Channel RCA Audio Outputs: Includes 4V, 6-channel RCA audio outputs with subwoofer control for a superior sound experience.

• Toslink (Optical) Output: Get premium sound quality with Toslink digital audio output when connecting compatible systems.

• 15-Band Adjustable Graphic EQ: Fine-tune your audio to perfection with the 15-band adjustable EQ, allowing for detailed sound customization.

• Built-In Crossover: The HEIGH10 includes HPF (High Pass Filter) and LPF (Low Pass Filter), ensuring optimal sound performance for your subwoofer and speakers. Additionally, the system features 3 user EQ presets for different audio sources.

Safety Features

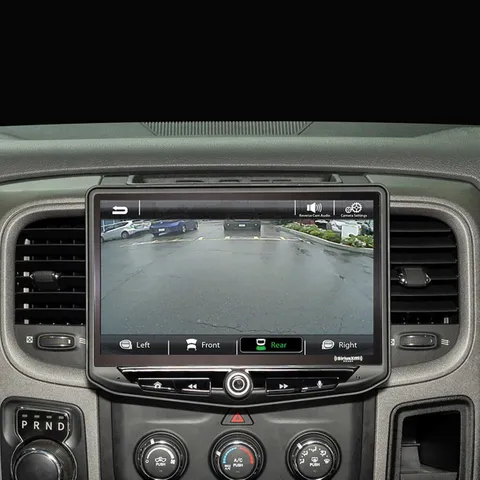

• 4 AHD Camera Inputs: The HEIGH10 supports 4 independent AHD camera inputs to improve safety and reduce risks while driving. Easily monitor your surroundings with clear, high-definition camera feeds.

• Onscreen Camera Switching: Switch between camera inputs directly on the screen for easier parking and reversing.

• Customizable Camera Settings: Tailor the camera settings menu to your preferences for a more personalized experience.

• Rear Camera Audio Input: Perfect for commercial and motorhome/campervan applications, the rear camera input can also support audio for added versatility.

Specifications

• Display:

  • Screen Size: 10 inches with a 16:9 aspect ratio for a wide and immersive viewing experience.

  • Resolution: 1024 x 600 pixels for crisp visuals and vibrant colors.

  • Active Area: 222.72 mm (W) x 125.28 mm (H), optimized for clarity and touch responsiveness.

  • Operating Temperature: -20°C to 70°C to function flawlessly in a range of environments.

• Audio:

  • Load Impedance: 4Ω nominal, 2Ω allowable for versatile speaker setups.

  • Continuous Power Output: 16W RMS x 4 at 4Ω for clear, distortion-free audio.

  • Audio Output Level: 4.0V preout for clean, dynamic sound.

  • EQ: 15-band adjustable EQ with subwoofer LPF and HPF filters for tailored sound output.

• Tuning:

  • FM: 87.9 MHz to 107.9 MHz, with SNR: 65dB for optimal radio reception.

  • AM: 530KHz to 1710KHz, with SNR: 58dB.

• Connectivity:

  • Bluetooth: V4.2, Class 2, with support for 2.4GHz to 2.48GHz.

  • HDMI Input: Supports resolutions up to 1920x1080p for crisp video output.

  • TOSLINK (Optical): Provides 48kHz variable output for the highest quality audio.

  • USB: USB 2.0, Max current supply: 1.5A, supports both FAT32 and NTFS file systems.

Included in the Box

• HEIGH10 10-inch touchscreen display/infotainment system

• Vehicle-specific radio mounting dash kit for a clean, factory-like installation.

• Complete vehicle integration module for easy setup and integration with your RAM truck’s systems.

• Vehicle & radio-specific plug-and-play harnessing for hassle-free installation.

• AM/FM antenna adapter to ensure clear radio reception.

• USB retention cable to maintain the functionality of your vehicle’s original USB ports.

• Stereo connection lead for connecting your vehicle’s audio system.

Why Choose the STINGER HEIGH10 for Your RAM Truck (2013 – 2018)?

• Factory-Like Integration: The HEIGH10 provides a seamless, factory-like installation while adding modern features like Apple CarPlay®, Android Auto™, and advanced sound customization.

• Advanced Connectivity: With Bluetooth 4.2, Apple CarPlay®, and Android Auto™, your truck’s infotainment system becomes smarter and more connected.

• Superior Sound Quality: Enjoy a 16W RMS x 4 built-in amplifier, 6-channel RCA outputs, and a 15-band graphic EQ to tailor the sound experience to your preferences.

• Enhanced Safety Features: The 4 AHD camera inputs, camera input switching, and customizable camera settings ensure added safety when driving and parking.

Elevate your RAM Truck (2013 – 2018) with the STINGER HEIGH10 and enjoy a more connected, safer, and enjoyable ride every day.
