STINGER HEIGH10 JEEP WRANGLER JK 2011 – 2018

Description

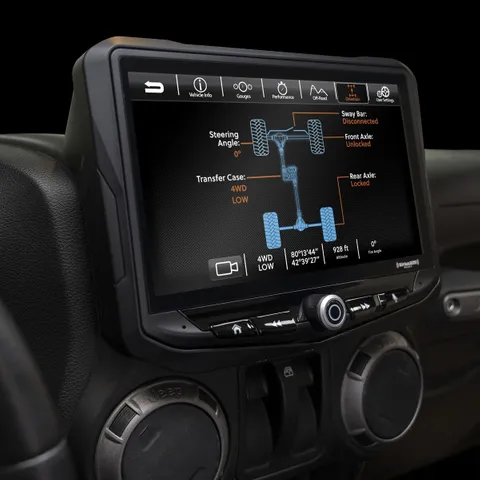

STINGER HEIGH10 FOR JEEP WRANGLER JK (2011 – 2018)

Transform your Jeep Wrangler JK (2011 – 2018) with the STINGER HEIGH10 10-inch touchscreen infotainment system. Designed to elevate your driving experience, the HEIGH10 offers advanced features, enhanced connectivity, and improved safety to ensure a more comfortable and enjoyable ride.

Key Features & Integration

• 10-Inch High-Resolution Touchscreen: Featuring a high-resolution, 10-inch digital touchscreen with 16.7 million colors, the HEIGH10 provides a crisp and vibrant visual experience, even in challenging lighting conditions. Anti-glare and anti-reflection technology ensure perfect visibility day or night.

• Customizable RGB Illumination: The HEIGH10 allows you to personalize the display with customizable RGB illumination, letting you match the factory lighting or create your own color scheme for a unique touch.

• Factory-Like Integration: The vehicle-specific dash kit and mounting system ensure a seamless installation that blends perfectly with your Jeep’s interior. The vehicle-specific interface also supports interactive on-screen controls, such as climate settings, vehicle performance apps, and more.

Vehicle-Specific Integration

• RadioPRO Advanced Interface: The RadioPRO Advanced module provides full control over your Jeep Wrangler JK’s infotainment system, including camera triggers and steering wheel controls, ensuring complete integration and ease of use.

• Retained Factory Features: The HEIGH10 retains several important factory functions, such as:

  • Steering wheel control functionality

  • Phone button compatibility

  • Parking sensor audio and graphics

  • Vehicle menus (including doors & locks, safety, lights, display, and clock settings)

  • Outputs for speed pulse, reverse gear, and park brake

  • Aftermarket camera feed (if applicable)

Connectivity & Media

• Apple CarPlay®: Effortlessly access your iPhone’s apps, navigation, and music through Apple CarPlay, making your drive more connected and intuitive.

• Google Android Auto™: Integrate your Android smartphone for seamless access to apps, music, and navigation, all displayed on the HEIGH10.

• DAB+ Digital Radio: Enjoy crystal-clear sound with the DAB+ Digital Radio tuner, offering access to a wide variety of stations in superior quality.

• AM/FM Radio: Traditional AM/FM radio is also supported, ensuring compatibility with all your favorite stations.

• Bluetooth® 4.2: Hands-free calling and music streaming are made easy with Bluetooth 4.2, featuring A2DP with aptX™ for better audio quality.

• USB Ports: 2 USB rear inputs with 1.5-Amp output ensure convenient charging and media playback options.

Audio Features

• Built-in Amplifier (25W x 4): The HEIGH10 includes a 25W x 4 built-in amplifier to deliver powerful sound, ensuring your music is heard loud and clear.

• 15-Band Adjustable Graphic Equalizer: 15-band EQ allows you to fine-tune the audio for a customized listening experience, adjusting frequencies from 25Hz to 16KHz.

• Subwoofer and High Pass Filters: The subwoofer pre-out with LPF and the high pass filter (HPF) provide more control over the audio frequencies for a richer sound experience.

• Audio Output Level: The HEIGH10 has a max audio output of 4.0V preout, ensuring powerful and clear sound across all sources.

Safety Features

• Camera Inputs: The HEIGH10 supports factory cameras in full high-definition as well as aftermarket camera feeds (if applicable).

• Parking Sensors: Integrated parking sensor audio and graphics provide clear, visual alerts, helping you park and navigate safely.

• On-screen Vehicle Settings: Access essential vehicle settings on-screen, such as climate controls, doors & locks, safety settings, and more.

Specifications

• Display:

  • Screen Size: 10 inches with a 16:9 aspect ratio for optimal viewing.

  • Resolution: 1024 x 600 pixels.

  • Active Area: 222.72 mm (W) x 125.28 mm (H).

  • Operating Temperature: -20°C to 70°C.

• Audio:

  • Load Impedance: 4Ω nominal, 2Ω allowable.

  • Continuous Power Output: 25W x 4ch/4Ω, 20Hz to 20KHz, 1% THD.

  • Audio Output Level: 4.0V preout.

  • EQ: 15-band adjustable.

  • Subwoofer LPF & HPF: 6dB/12dB/18dB slope.

• Tuning:

  • FM: 87.9 MHz to 107.9 MHz, SNR: 65dB.

  • AM: 530KHz to 1710KHz, SNR: 58dB.

• Connectivity:

  • Bluetooth: V4.2, Class 2, 2.4GHz to 2.48GHz.

  • HDMI Input: Supports resolutions up to 1920x1080p.

  • TOSLINK (Optical): 48kHz variable output.

  • USB: USB 2.0, Max current supply: 1.5A, supports FAT32 and NTFS file systems.

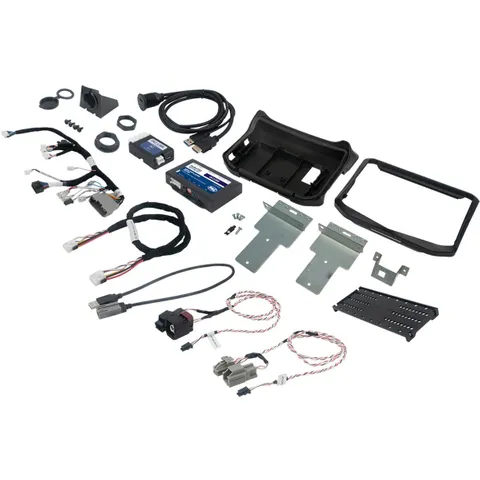

Included in the Box

• HEIGH10 10-inch touchscreen display/infotainment system

• Vehicle-matched radio mounting dash kit for seamless integration.

• Complete vehicle integration module for easy setup.

• Vehicle & radio-specific plug-n-play harnessing for simple installation.

• AM/FM antenna adapter for radio signal compatibility.

• USB retention cable for continuous connectivity.

• Stereo connection lead for smooth audio integration.

Why Choose the STINGER HEIGH10 for Your Jeep Wrangler JK (2011 – 2018)?

• Factory Integration: Retains your Jeep Wrangler JK‘s essential factory features while adding the modern touch of a 10-inch display.

• Full Media Access: Apple CarPlay, Google Android Auto, Bluetooth, DAB+ radio, and USB support for a wide variety of media.

• Customizable Audio: With a 15-band EQ, subwoofer control, and HPF/LPF features, you can customize your sound experience to your liking.

• Safety Features: Integrated camera inputs and parking sensor graphics enhance driving and parking safety.

• Advanced Control: The RadioPRO Advanced interface offers full control over your Jeep’s infotainment, camera feeds, and vehicle settings.

Upgrade your Jeep Wrangler JK (2011 – 2018) with the STINGER HEIGH10 for an all-in-one infotainment system that combines advanced features with factory-style integration!
