STINGER HEIGH10 GMC SIERRA CHEVROLET SILVERADO 2014 – 2018

Description

STINGER HEIGH10 FOR GMC SIERRA & CHEVROLET SILVERADO (2014 – 2018)

Upgrade your GMC Sierra or Chevrolet Silverado (2014 – 2018) with the STINGER HEIGH10, a 10-inch touchscreen infotainment system designed to enhance your driving experience. With a combination of advanced technology, superior sound quality, and seamless vehicle integration, the HEIGH10 offers a smarter, more connected, and more enjoyable ride.

Key Features & Integration

• 10-Inch High-Resolution Touchscreen: The HEIGH10 features a 10-inch display with 16.7 million colors, providing sharp visuals and an immersive experience. Anti-glare and anti-reflection technology ensure that your screen remains clear even in bright sunlight.

• Customizable RGB Illumination: Personalize your display with RGB illumination that can match the factory lighting or create your own color scheme for a unique touch.

• Factory-Like Integration: The included vehicle-specific dash kit and mounting system provide a factory-fitted look, while the vehicle-specific interface supports interactive on-screen controls, such as climate settings, vehicle performance apps, and more.

Vehicle-Specific Integration

• RadioPRO Advanced Interface: The RadioPRO Advanced system allows for full control of your GM vehicle’s infotainment setup. Camera triggers and steering wheel controls are seamlessly integrated for easy operation.

• Retained Factory Features: The HEIGH10 retains key factory functions, including:

  • OnStar Telematics System for vehicle diagnostics and safety.

  • Steering wheel controls for easier operation while driving.

  • Phone button compatibility for hands-free calling.

  • Factory Wi-Fi system for internet connectivity.

  • Front and rear park assist with warning chimes for safer parking.

  • Vehicles original auxiliary input for additional media connections.

Connectivity & Media

• Apple CarPlay®: With Apple CarPlay, you can easily connect your iPhone to the HEIGH10 to access navigation, music, and apps right on the large touchscreen.

• Google Android Auto™: Android Auto allows you to connect your Android smartphone to the system for seamless access to apps, navigation, and music.

• DAB+ Digital Radio: Enjoy a wide range of digital radio stations with crystal-clear audio quality via the DAB+ tuner.

• AM/FM Radio: Traditional AM/FM radio support ensures compatibility with your favorite local stations.

• Bluetooth® 4.2: Hands-free calling and music streaming are available with Bluetooth 4.2, which supports A2DP with aptX™ for improved sound quality.

• USB Ports: Two USB rear inputs with 1.5-Amp output provide additional charging options and media playback.

Audio Features

• Built-in Amplifier (16W RMS x 4): The HEIGH10 delivers powerful sound with a built-in amplifier providing 16W RMS x 4 channels of output.

• 15-Band Adjustable Graphic Equalizer: Tailor your audio with the 15-band graphic EQ, giving you the flexibility to adjust frequencies from 25Hz to 16KHz.

• Subwoofer & High Pass Filters: The subwoofer pre-out and HPF/LPF filters offer precise control over your audio setup, enabling you to enhance bass response and fine-tune your sound.

• Audio Output: With a 4V, 6ch RCA audio output and Toslink (optical) digital audio output, the HEIGH10 ensures that you get the best possible sound quality for your entertainment.

Safety Features

• Camera Inputs: The HEIGH10 supports 4 AHD camera inputs to enhance safety, including the option for rear camera input with selectable audio for commercial and motorhome/campervan applications.

• Parking Sensors: Integrated front and rear park assist features with warning chimes help you safely navigate tight spaces.

• Onscreen Camera Input Switching: You can easily switch between camera feeds on the screen, ensuring you have full visibility when reversing or parking.

Specifications

• Display:

  • Screen Size: 10 inches with a 16:9 aspect ratio.

  • Resolution: 1024 x 600 pixels for sharp and clear visuals.

  • Active Area: 222.72 mm (W) x 125.28 mm (H).

  • Operating Temperature: -20°C to 70°C for optimal performance in any condition.

• Audio:

  • Load Impedance: 4Ω nominal, 2Ω allowable.

  • Continuous Power Output: 16W RMS x 4 at 4Ω.

  • Audio Output Level: 4.0V preout for strong, clear sound.

  • EQ: 15-band adjustable for total audio customization.

  • Subwoofer LPF & HPF: 6dB/12dB/18dB slope for precise frequency control.

• Tuning:

  • FM: 87.9 MHz to 107.9 MHz, SNR: 65dB.

  • AM: 530KHz to 1710KHz, SNR: 58dB.

• Connectivity:

  • Bluetooth: V4.2, Class 2, 2.4GHz to 2.48GHz.

  • HDMI Input: Supports up to 1920x1080p resolution.

  • TOSLINK (Optical): 48kHz variable output.

  • USB: USB 2.0, Max current supply: 1.5A, supports FAT32 and NTFS file systems.

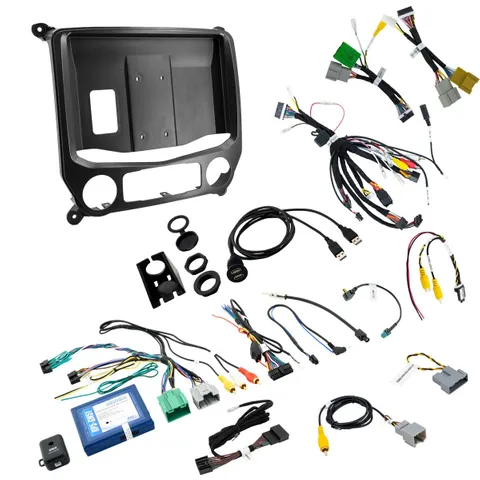

Included in the Box

• HEIGH10 10-inch touchscreen display/infotainment system

• Vehicle-specific radio mounting dash kit for a seamless, factory-like fit.

• Complete vehicle integration module for easy installation.

• Vehicle & radio-specific plug-and-play harnessing for hassle-free setup.

• AM/FM antenna adapter for enhanced radio reception.

• USB retention cable to maintain media connectivity.

• Stereo connection lead for straightforward audio integration.

Why Choose the STINGER HEIGH10 for Your GMC Sierra or Chevrolet Silverado (2014 – 2018)?

• Complete Integration: The HEIGH10 provides full integration with your vehicle’s existing features, including OnStar, Wi-Fi, and park assist.

• Personalized Connectivity: Connect your iPhone or Android phone through Apple CarPlay® or Google Android Auto™ to easily access your favorite apps, music, and navigation.

• Premium Sound: With a built-in amplifier, 15-band EQ, and subwoofer control, you’ll experience superior sound quality and deep, powerful bass.

• Increased Safety: Retain factory cameras and access 4 AHD camera inputs for enhanced parking and driving visibility.

Upgrade your GMC Sierra or Chevrolet Silverado (2014 – 2018) with the STINGER HEIGH10 and enjoy superior infotainment, safety, and sound—all with a factory-like installation.

📞 Contact us now for your STINGER HEIGH10 upgrade!
