Description
CS-ZX6940
Woofer
- Size
- 15 x 23 cm (6” x 9”)
- Type
- 4-Way Coaxial
- Diaphragm
- Carbon Mica 3D Cone
- Surround
- Single Roll Rubber Surround
- Magnet
- Ferrite Magnet
Midrange
- Size
- 6.6 cm (2-5/8”)
- Diaphragm
- Poly-Ether Imide Cone
- Magnet
- Ferrite Magnet
Tweeter
- Size
- 2.5 cm (1”)
- Diaphragm
- Poly-Ether Imide Dome
Super Tweeter 1
- Size
- 1.5 cm (19/32”)
- Diaphragm
- Poly-Ether Imide Dome
General
- Power Handling Capacity (Peak Power)
- 550W
- Power Handling Capacity (RMS)
- 80W
- Impedance
- 4 ohms
- Sound Pressure Level
- 91dB/W.m
- Frequency Response
- 35 – 25,000Hz
- Weight
- 1.73kg (3.9 lbs)
- Magnet Mass
- 570g (20.1 oz)
- Mounting Depth
- 80.5mm (3-3/16″)
CS-ZX6940
Manual
- Operation Manual
- Arabic,Dutch,English,French,German,Italian,Persian,Russian,Spanish,Swedish,Ukrainian

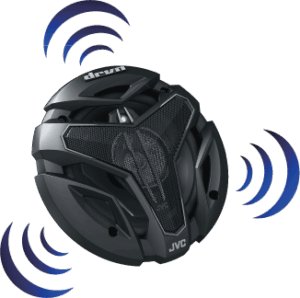

drvn XX Series Speaker

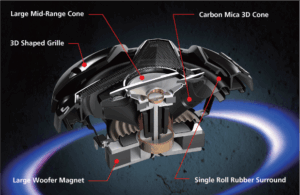

Sound Dynamics Design with 3D Shaped Grill
Based on the drvn Series, the drvn XX Series is designed to be even more aggressive and tough-looking. Semi-open grilles have a speaker box effect, diffusing warm, ambient sound across the vehicle.
Aramid Carbon Mica 3D Cone Woofer
Aramid carbon mica 3D cone woofer provides increased strength with less distortion, precise amplitude, and speedy response.
Rubber Surround
Durable and quick-responding rubber surround supports high-power audio input, with undistorted bass.

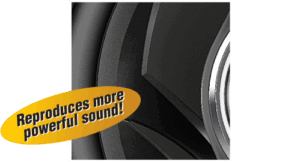

Enhanced Mid-Range Sound
Larger cones deliver lively mid- and high-range sound as well as clear vocals, resulting in improved overall sound quality.
