Description
-
CS-DR6931
Woofer
- Size
- 15 x 23 cm (6” x 9”)
- Diaphragm
- Carbon Mica Cone
- Surround
- Hybrid Surround (Rubber & Cloth)
- Magnet
- Ferrite
Midrange
- Size
- 6.6 cm (2-5/8”)
- Type
- Cone
- Diaphragm
- Poly-Ether Imide
- Magnet
- Ferrite
Tweeter
- Size
- 1.5 cm (19/32”)
- Type
- Dome
- Diaphragm
- Poly-Ether Imide
General
- Power Handling Capacity (Peak Power)
- 500W
- Power Handling Capacity (RMS)
- 70W
- Impedance
- 4 ohms
- Sound Pressure Level
- 88dB
- Frequency Response
- 58 – 21,000Hz
- Weight
- Weight (w.Grille)
- 1.07kg (2.4lbs)
- Weight (w/o Grille)
- 0.99kg (2.2lbs)
- Magnet Mass
- 285g (10oz)
- Mounting Depth
- 79 mm (3-1/8″)
CS-DR6931
DR Series Speakers
Great Factory Replacement
Installable vehicle types are greatly increased thanks to its shorter height.

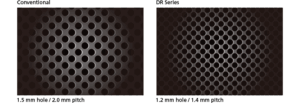

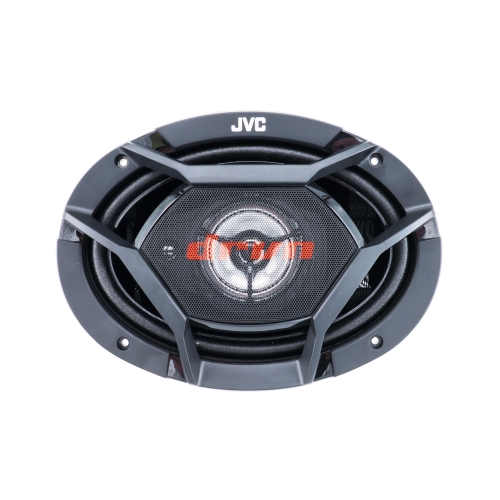

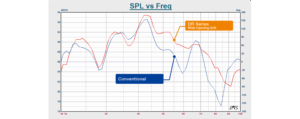

Wide Opening Grill
Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.
Carbon Mica Cone
Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.
Hybrid Surround
Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.
Small Design Tweeter Cover
Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

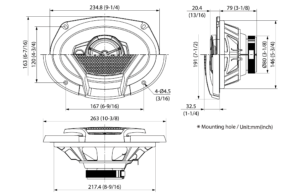

Dimensions
