CS-DR621

Woofer

Size

16 cm (6-1/2”)

Diaphragm

Carbon Mica Cone

Surround

Hybrid Surround (Rubber & Cloth)

Magnet

Ferrite

Tweeter

Size

2.5 cm (1”)

Type

Balanced

Diaphragm

Poly-Ether Imide

Magnet

Neodimium

General

Power Handling Capacity (Peak Power)

300W

Power Handling Capacity (RMS)

50W

Impedance

4 ohms

Sound Pressure Level

89dB

Frequency Response

85 – 23,800Hz

Weight

Weight (w.Grille)

0.61kg (1.4lbs)

Weight (w/o Grille)

0.55kg (1.3lbs)

Magnet Mass

182g (6.4oz)

Mounting Depth

44 mm (1-3/4″)

CS-DR621

Manual

Operation Manual

English,French,Spanish

2.3MB

DR Series Speakers







Balanced Neodymium Tweeter

It provides detailed high range and smooth mid range.

Great Factory Replacement

Installable vehicle types are greatly increased thanks to its shorter height.

Wide Opening Grill

Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

Carbon Mica Cone

Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround

Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover

Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

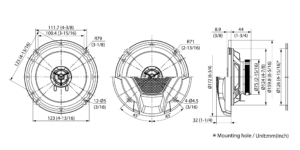

Dimensions
